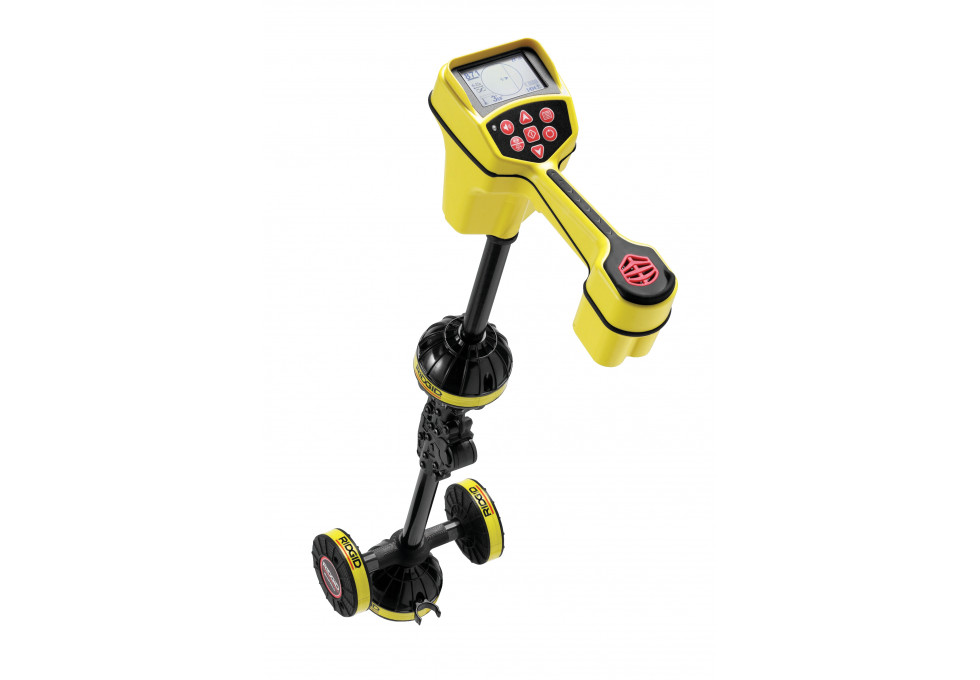

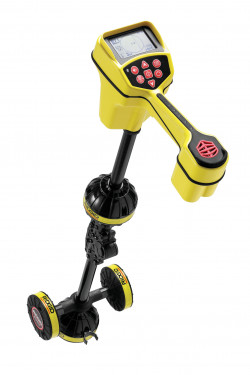

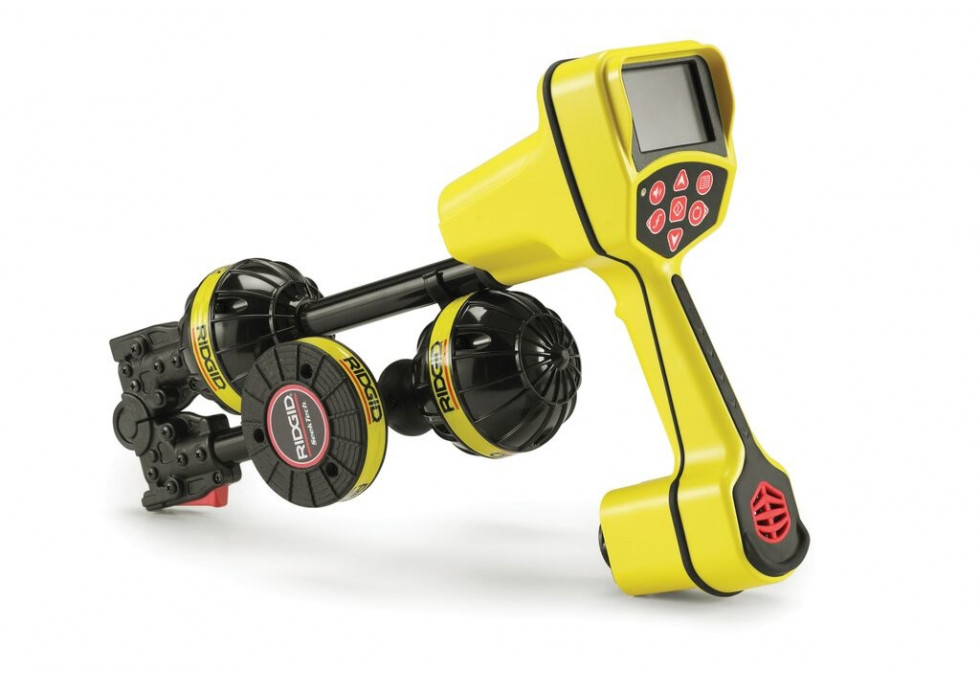

RIDGID SeekTech SR-20 Line Locator
Hand Tools - LOCATOR SR-20 SEEKTECH - *UTILITY LOCATOR, REQUIRE - *TRANSMITTER 21898/21903
SeekTech SR-20 Line Locator
Hand Tools - LOCATOR SR-20 SEEKTECH - *UTILITY LOCATOR, REQUIRE - *TRANSMITTER 21898/21903
Product #: RDG21893
$4,614.92 /EA
Login for contractor price
Regular: $4,614.92 /
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Please Call for Special Orders : 778-330-2602
QTY:
BUY DIRECT
RIDGID®, a leading manufacturer of innovative tools for the professional trades, offers over 300 types of tools. No customer reviews for the moment.
Product Description
The Ridgid SeekTech SR-20 Line Locator. RECEIVER,SR-20 UTILITY LOCATOR
Build
- Continuously monitors for interference; audio cues and on-screen displays provide guidance to help users avoid mistakes.
- Proximity signal and signal strength help work through difficult locates.

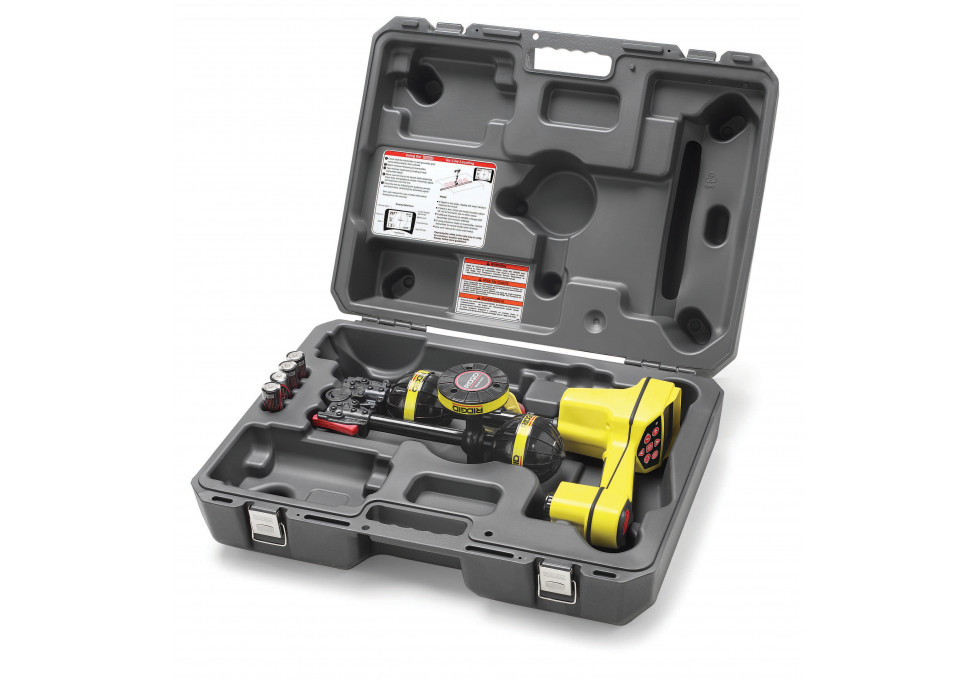

- Included case and folding antennae mast allow for secure and easy transport and storage.
- Shows the utility's estimated position, direction and path.
- Captures the complete signal field for greater locating speed and accuracy.
Approximate Item/Package Dimensions in inches
- Width: 24.0
- Height: 10.0
- Length: 19.0
Approximate Item/Package Weight in pounds
- Weight: 17.0
Product Specifications
| Vendor Part #: | 21893 |
| Weight: | 4 LB / 1.8 KG |
| Spec 1: | Active Line Trace Frequencies : 128 Hz, 1 kHz, 8 kHz and 33 kHz. |
| Spec 2: | Passive Power Trace : 50 Hz, 60 Hz, |
| Spec 3: | Passive Radio Trace : 4 kHz-15 kHz, 15 kHz-36 kHz. |
| Spec 4: | Sonde Frequencies : 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz. |
| Spec 5: | Power Source : 4 C-Cell batteries (included) or Rechargeable RIDGID® Professional 18V battery with RIDGID SeekTech® 18V Adaptor (optional). |
| Spec 6: | Battery Life : Varies with battery rating, use and operating factors. Four size C, alkaline batteries provide approximately 10 to 15 hours. RIDGID® Professional 18V battery provides approximately 18 to 22 hours. |
| Spec 7: | Weight : 3.5 lbs. (1.6 kg). |
| Spec 8: | Meets FCC Class A and EN 55022 Class A requirements. |
| Spec 9: | 30 user definable frequencies can be set from 10 Hz to 35 kHz. |
