DeWALT Anchors & Fasteners Concrete Insert Anchors - Cast-in-Place - Steel Deck / 75 Series *BANG-IT®+
Inserts can be installed in upper and lower steel deck profiles with limited concrete topping thickness - Color coded by size

Concrete Insert Anchors - Cast-in-Place - Steel Deck / 75 Series *BANG-IT®+


Inserts can be installed in upper and lower steel deck profiles with limited concrete topping thickness - Color coded by size

Product #: PWR07540
Options: Thread Diameter: 1/4"
Info: Brown

$445.87 /EA
Login for contractor price
Regular: $445.87 /

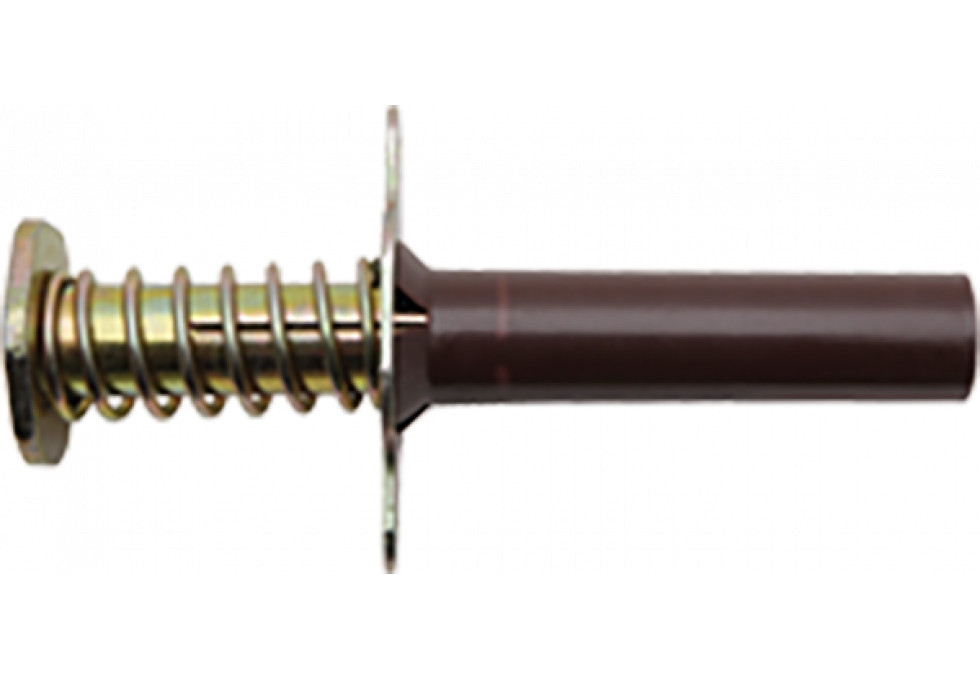

PWR07540 1/4" Brown , SoldOut
$445.87 /100PC

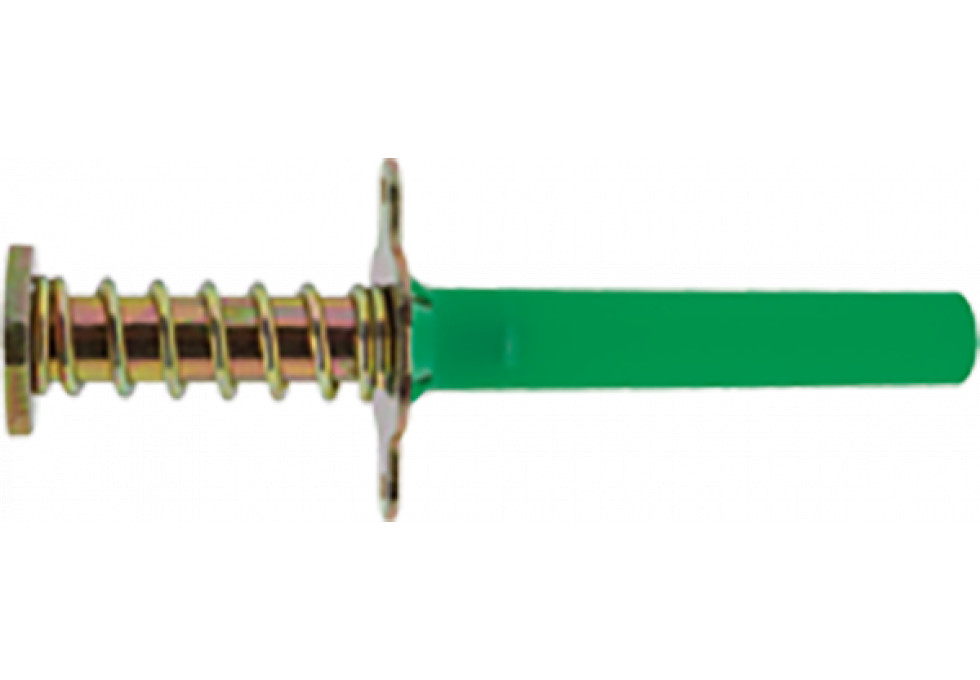

PWR07542 3/8" Green , SoldOut
$504.69 /100PC

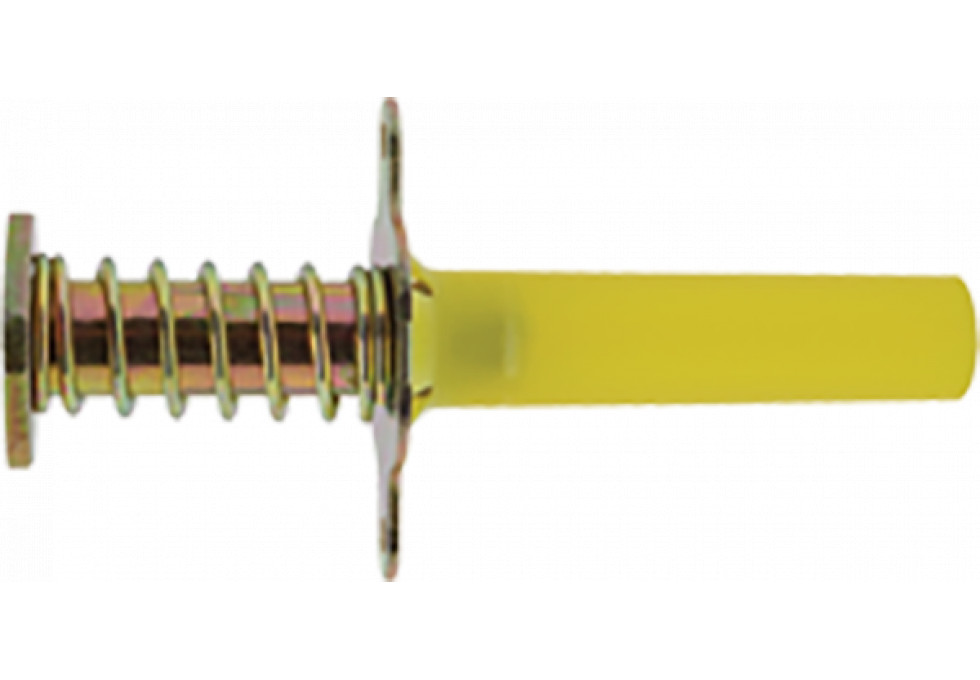

PWR07544 1/2" Yellow , InStock
$523.30 /100PC

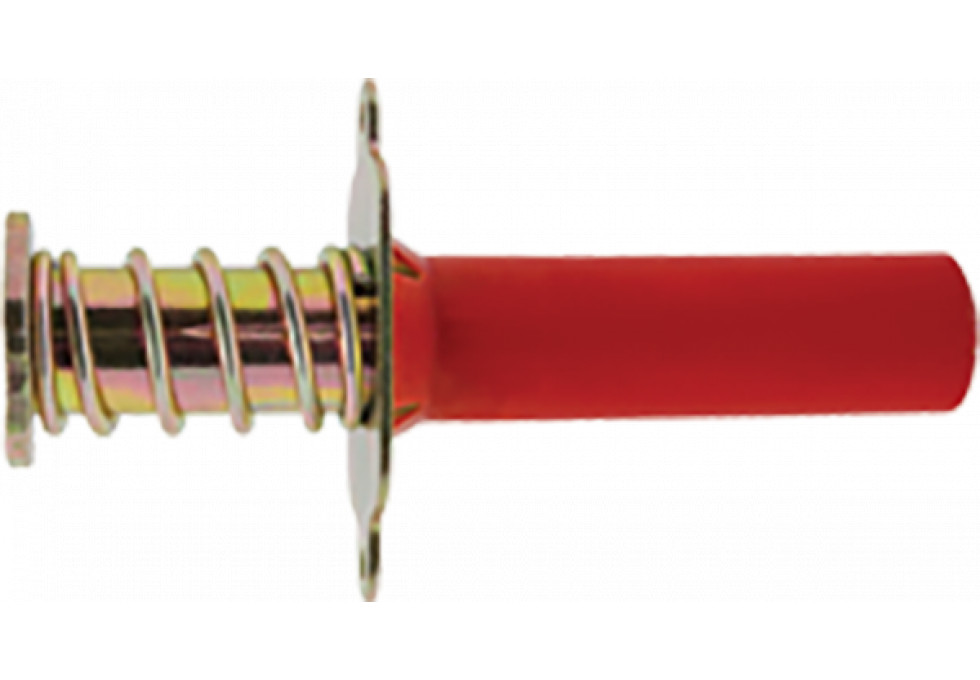

PWR07546 5/8" Red , InStock
$849.07 /100PC

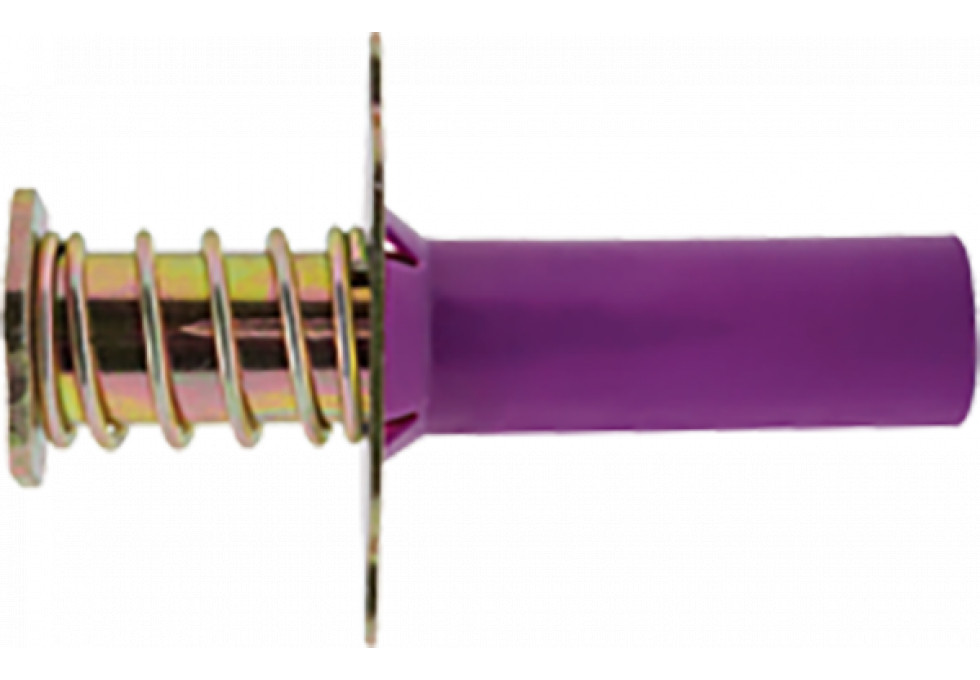

PWR07548 3/4" Purple , InStock
$875.77 /100PC
Thread Diameter
Info
PROD #
Price
1/4"
Brown
PWR07540
$445.87 /100PC
3/8"
Green
PWR07542
$504.69 /100PC
1/2"
Yellow
PWR07544
$523.30 /100PC
5/8"
Red
PWR07546
$849.07 /100PC
3/4"
Purple
PWR07548
$875.77 /100PC

445.87

/EA

This combination does not exist. Please select another one.
Available Online: 0
Pre Order Item
Estimated Availability Date:
Availability in Store:

Call for Availability   : 778-330-2602


QTY:

ADD TO CART
BUY DIRECT
PWR07540 1/4" Brown
$445.87 /100PC
Call for Availability   : 778-330-2602
PWR07542 3/8" Green
$504.69 /100PC
Call for Availability   : 778-330-2602
PWR07544 1/2" Yellow
$523.30 /100PC
PWR07546 5/8" Red
$849.07 /100PC
PWR07548 3/4" Purple
$875.77 /100PC
Thread Diameter
Info
PROD #
Price
1/4"
Brown
PWR07540
$445.87 /100PC
3/8"
Green
PWR07542
$504.69 /100PC
1/2"
Yellow
PWR07544
$523.30 /100PC
5/8"
Red
PWR07546
$849.07 /100PC
3/4"
Purple
PWR07548
$875.77 /100PC

DeWALT Anchors & Fasteners

No customer reviews for the moment.

Product Description

Build

Bang-It+ concrete inserts are designed for installation in and through composite steel deck (i.e. “pan-deck”) used to support newly poured concrete floors or roof slabs.

The Bang-It+ concrete inserts are specifically designed to provide hangar attachments for mechanical, electrical, plumbing (MEP), and fire protection. After installation, the protective sleeve of the insert protrudes below the surface of the deck.

The sleeves are color-coded by size and allow overhead attachment of steel threaded rod in sizes ranging from 1/4" to 3/4" in diameter.

The sleeve prevents sprayed fireproofing material and acoustical dampening products from clogging the internal threads of the insert. It also prevents burying, masking, or losing the insert location.

A hex impact plate offers resistance to rotation within the concrete as a steel threaded rod is being installed.

  • Fast and simple to install, the low installed cost
  • Color-coded by size for simple identification, can be further marked by trade and/or utility
  • Inserts can be installed in upper and lower steel deck profiles with limited concrete topping thickness (see installation details)
  • Hex head does not rotate when set
  • The sturdy base design resists inserts from being kicked over after placement
  • Suitable for seismic and wind loading
  • Multi-thread inserts allow for multiple diameters using the same part
  • All sizes of multi-thread inserts rated for tension and shear loading
Product Specifications
Vendor Part #:7540
Color:Coded by Size
Environment Use:Seismic & Wind Loading Rated
Surface Type:Steel Deck
Product Document
  • Upper and Lower Steel Deck
  • Anchor for Concrete
