Sumner Contractor Lift - 24' - Steel / 783652 *2124
650 lbs Capacity - Customizable - Reversible Forks - No Tools Required - Fits Through Standard Doorways - Single Speed Winch - For lifting materials to desired work heights

Contractor Lift - 24' - Steel / 783652 *2124


650 lbs Capacity - Customizable - Reversible Forks - No Tools Required - Fits Through Standard Doorways - Single Speed Winch - For lifting materials to desired work heights

Product #: SUM783652

Pls.Call

0

/EA

$4,591.48

Available Online: 0
Pre Order Item
Estimated Availability Date:
Availability in Store:

Please Call for Special Orders : 778-330-2602


QTY:

ADD TO CART
BUY DIRECT
Manufacturer of work benches, welding tools and handling carts.

No customer reviews for the moment.

Product Description

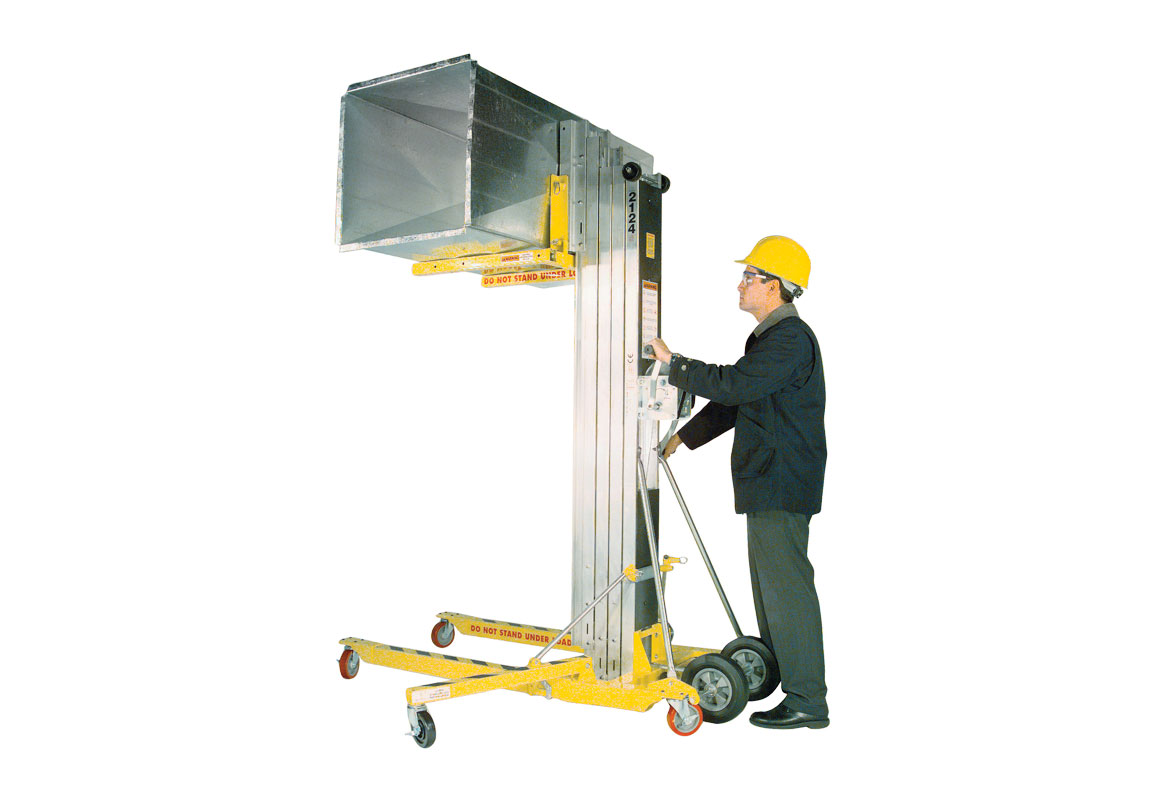

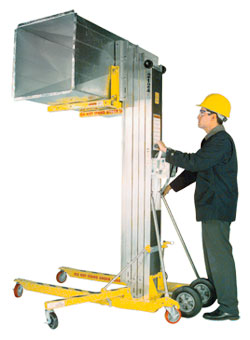

The Sumner Series 2100 Contractor 24' Lift #2124 is built to lift materials up to 650 lbs. to desired work heights.


Build

The Sumner 2124 Contractor Lift is specifically built to lift materials to a maximum height of 23’ 9-3/8” with a 650 lbs. load capacity.

This is an excellent all-round contractor lift that requires no tools in order to operate, is lightweight, fits through standard doorways and tail gates, and has a loading bar that is great for overhead cranes.

Comes with plunger pins for quick readjustments and compact storage, reversible forks for added height capabilities, and 10” rough terrain wheels that makes loading a truck or van hassle free.

This lift uses a highly reliable Sumner-built single speed winch that uses an idler roller to feed the cable evenly on the drum to avoid cable flats.


Reaches up to 23’ 9-3/8” high!


Safety

This contractor lift has a pulley guard that stops the load cable from coming off and the cable feeds inside the mast so there is no exposed cable near the operator’s face.

The fast action stabilizer legs are mounted on the base top and fold down with ease and lock in place ensuring that the lift will not tip when lifting a load.

Built with roller wheels on the top of the mast for helping to roll into trucks or vans and the legs come with lockable 5” casters with hard tread urethane wheels that stop the unit from moving when in operation.


Options

This contractor lift can be fully customized to meet your needs!

Please call us to request any of the following options:

  • Boom Carriage (783642) - Ideal for installing pipe or lifting "from the top" applications
  • Fork Extensions (783691) - Extends the forks from 28" to 42"
  • Pipe Cradle (783705) - Great for duct pipe or other HVAC applications
  • Steering Handle (786695) - Helps improve lift maneuverability
  • Two-Speed Winch Handle Kit (783765) - Offers both standard and high speed settings
  • Foot Jack (784070) - Allows user to easily fold the legs of the lift up or down without laying the lift on it's back
  • Steel Tray (786320) - Great for HVAC applications and positioning transformers and junction boxes. Steel tray slides onto forks.
  • Cable Stay Safety Brake (783883) - Holds loads in place to prevent any slack in the cable, is gravity actuated and factory installed
  • Galvanized Finish (776270) - Makes the unit more resistant to corrosion and is perfect for demanding environments
Product Specifications
Vendor Part #:783652
Application:Lifting Materials
Color:Yellow / Silver
Lift Weight:366 lbs (166 kg)
Lifting Capacity:650 lbs (300 kg)
Material:Steel
Max Height:23 feet 9-3/8 inches
Shipping Weight:399 lbs (181.4 kg)
Height - Stowed:84 inches (2.13m)
Height - Operating:84 inches (2.13m)
Length - Stowed:34 inches (0.86 m)
Length - Operating:73 inches (1.84 m)
Base Width:31.25 inches (0.80 m)
Width with Stabilizer Legs:74 inches (1.88 m)
Ground Clearance:2.5 inches (6.4 cm)
Minimum Load Height:6 inches (15.2 cm)
Max Height - Forks Down:21 feet 9-5/8 inches (6.6 m)
Max Height - Forks Reversed:23 feet 9-3/8 inches (7.2 m)
