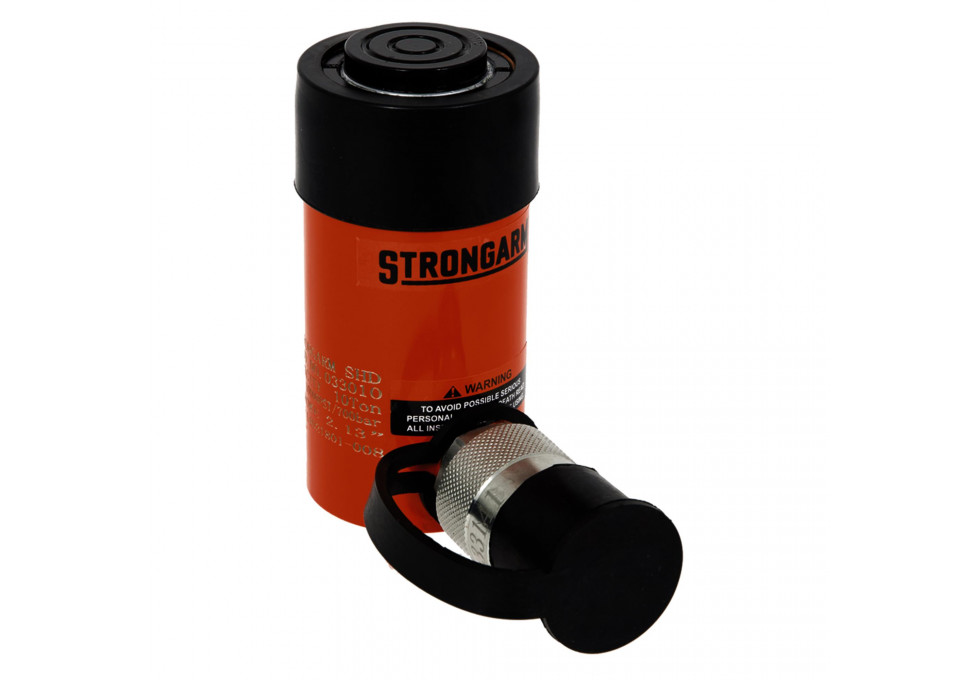

10 Metric Ton Single Acting Cylinder - Super Heavy Duty
10 Metric Ton Single Acting Cylinder - Super Heavy Duty - *STRONGARM
10 Metric Ton Single Acting Cylinder - Super Heavy Duty
Product #: JET033010
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
Jet Equipment & Tools is part of SureWerx™ Group supplying only professional grade tools, equipment and safety gear since 1957, earning the trust of Canadian workers. No customer reviews for the moment.
Product Description
The Jet Equipment 10 Metric Ton Single Acting Cylinder - Super Heavy Duty - *STRONGARM. 10 Metric Ton Single Acting Cylinder - Super Heavy Duty
Approximate Item/Package Dimensions in inches
- Width: 6.35
- Height: 7.80
- Depth: 3.50
Approximate Item/Package Weight in pounds
- Weight: 5.2100
Product Specifications
| Vendor Part #: | 033010 |
| Rated Capacity: | 10 T |
| Spring return: | Yes |
| Oil Capacity: | 4,78 in³ |
| Sku Product Number: | 033010 |
| Duty Level: | Super Heavy Duty |
| Base Fixturing Holes - Bolt Circle (U): | 1.54" |
| Base Fixturing Holes - Thread Depth (Z): | 0.47" |
| Base Fixturing Holes - Thread (V): | 5/16"-18UNC |
| Capacity @ 700 Bar (10,000 PSI): | 10/11 Metric tons/US tons |
| Collapsed Height (A): | 4.76" |
| Collar Thread (C): | 2-1/4" - 14 |
| Collar Thread Length (X): | 1.02" |
| Effective Area: | 2.25 in² |
| Extended Height (B): | 6.89" |
| Outside Diameter (D): | 2.25" |
| Piston Internal Thread (O): | 1"-8UNC |
| Piston Rod Diameter (F): | 1.50" |
| Piston Thread Length (P): | 0.75" |
| Stroke Length: | 2.13" |
